Ipsen VCT 324 R, 5 Bar
Pressure Quench, 15" x 24" x 36" deep with water
cooling system
Manufacturer
Ipsen
Type
Batch Vacuum
Furance, Pressure Quench
Model
VCT
324 R
Hot
Zone (Usable)

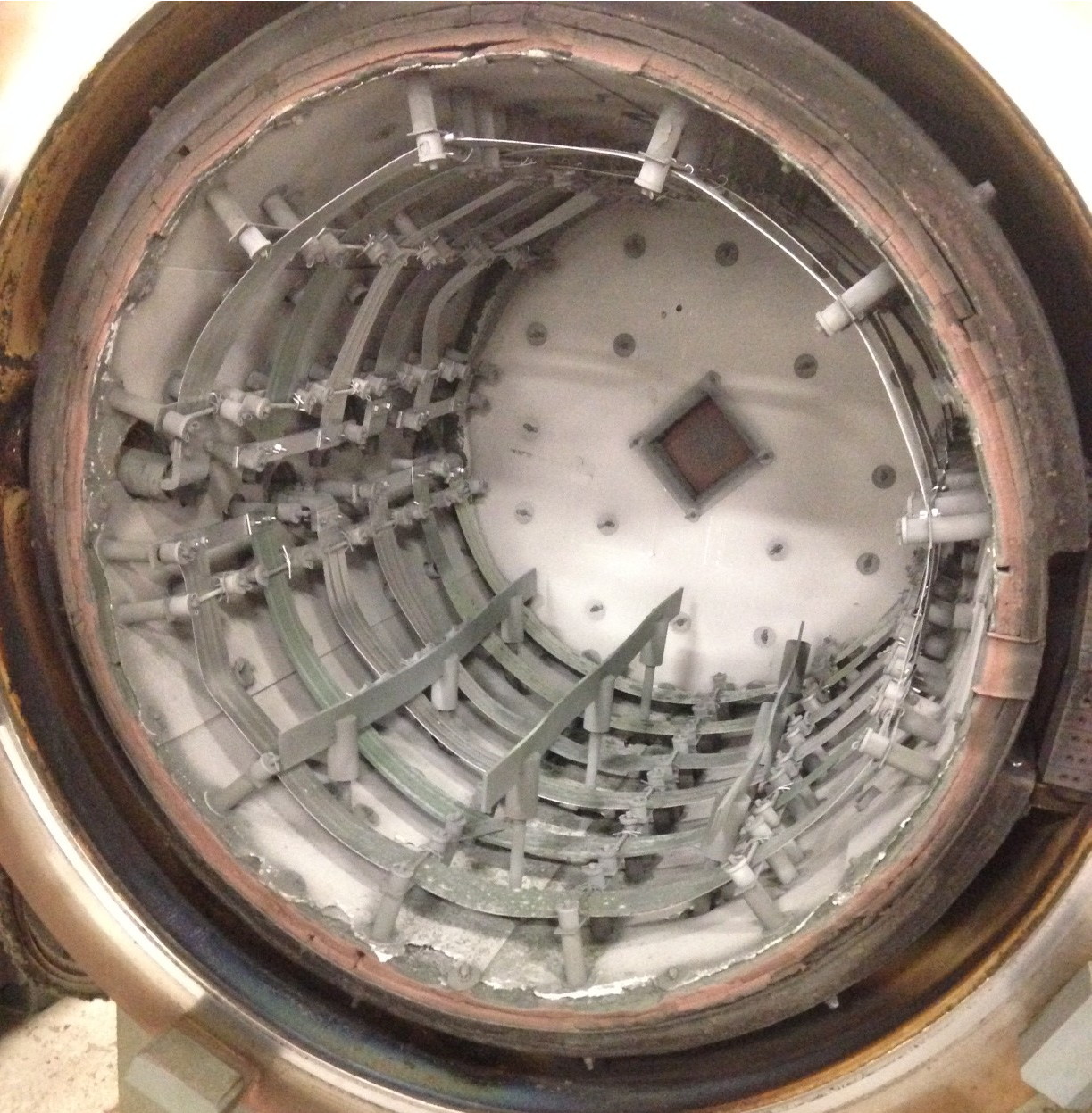

15”High
x 24”Wide x 36”Deep, graphite insulation with Graphite
elements
Overall
Dimensions
Maximum
Temp
2400ºF
Electrical
Utilities
112.5
kw, 460 VAC, 3 phase(heat)
154
kw, 460 VAC, 3 phase(controls)

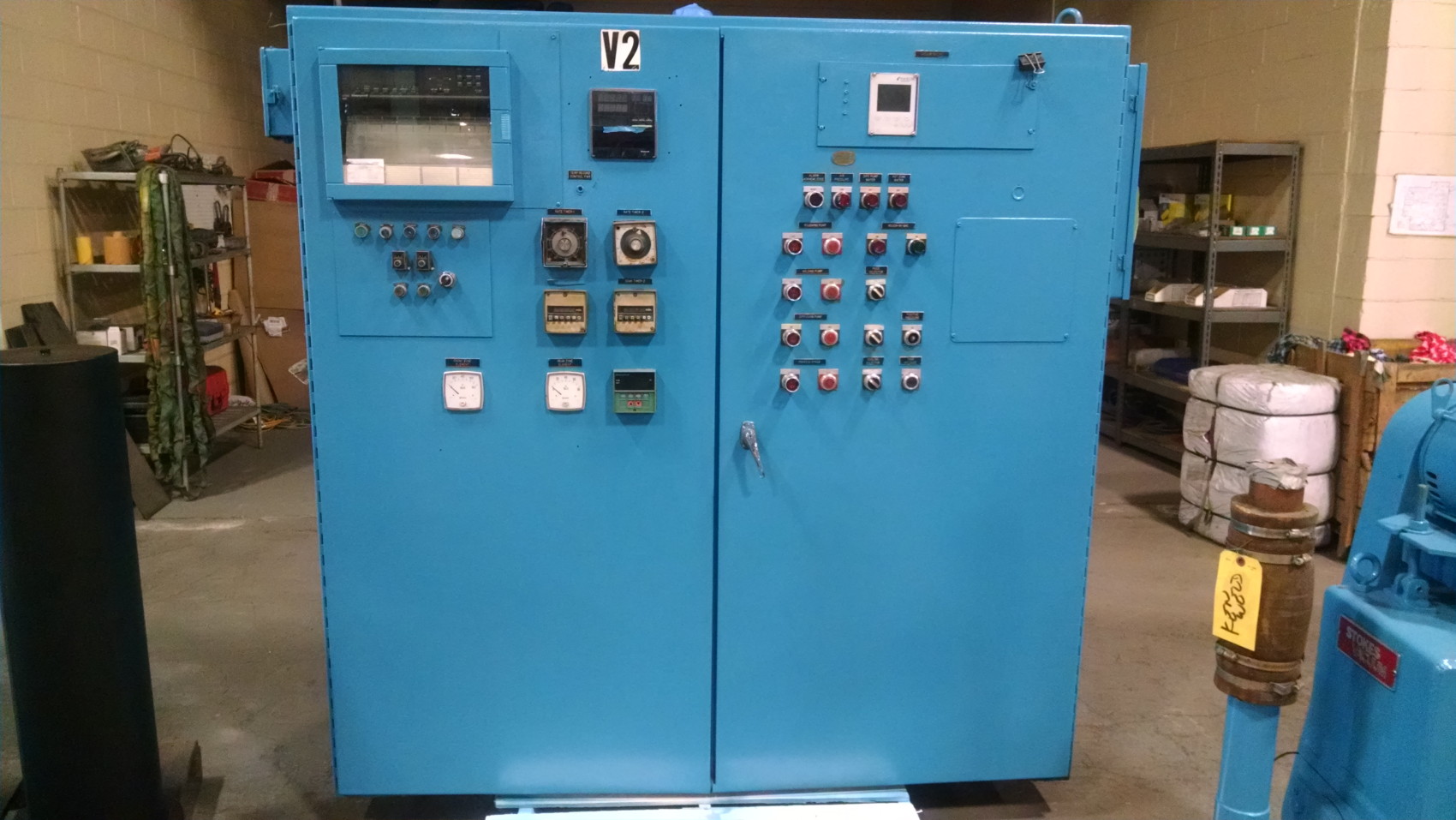

Controls
Honeywell
DCP550 digital temp and UDC 2000 over temp, Leybold TM 22
Vacuum gauge
General
Stokes

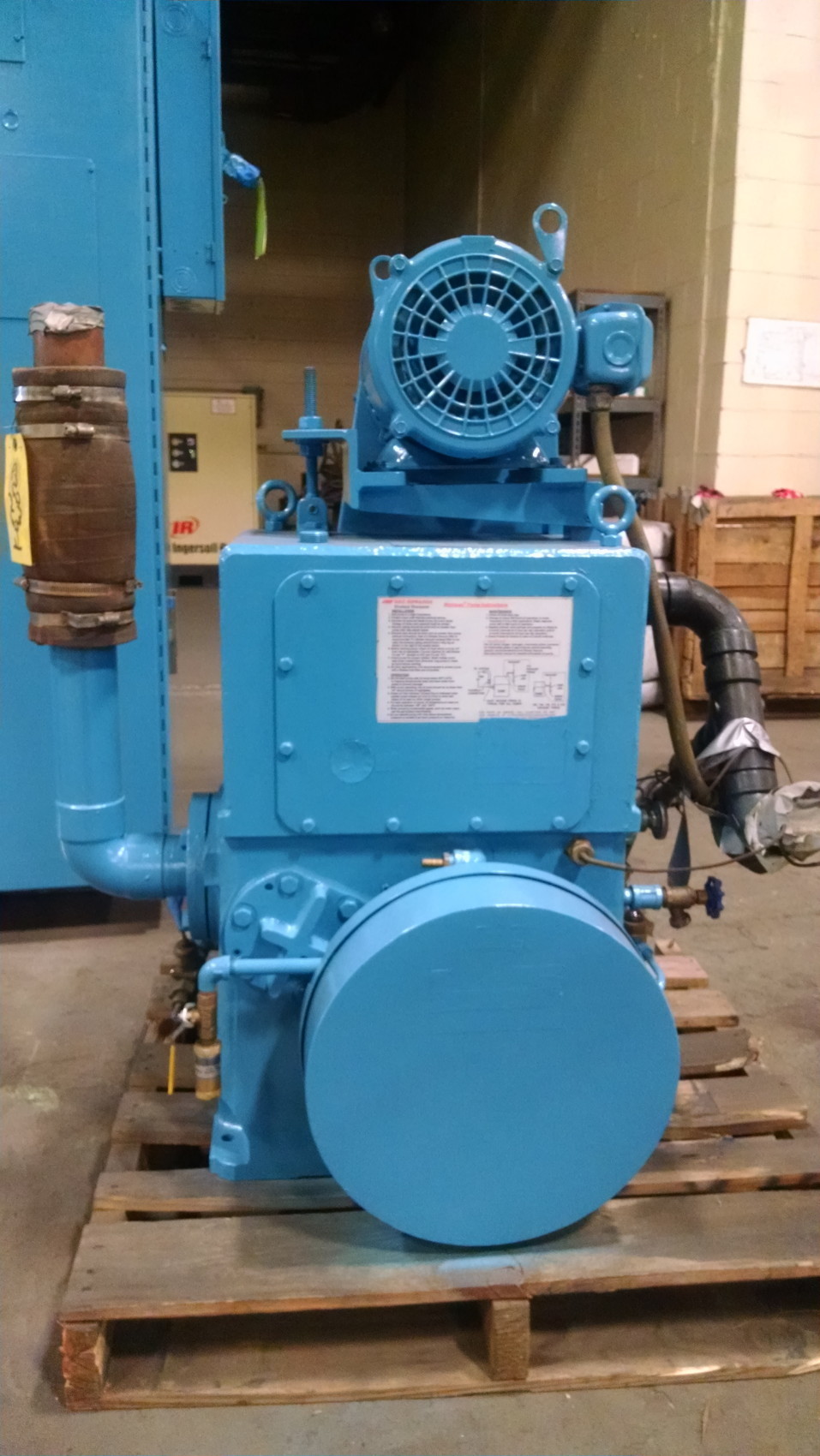

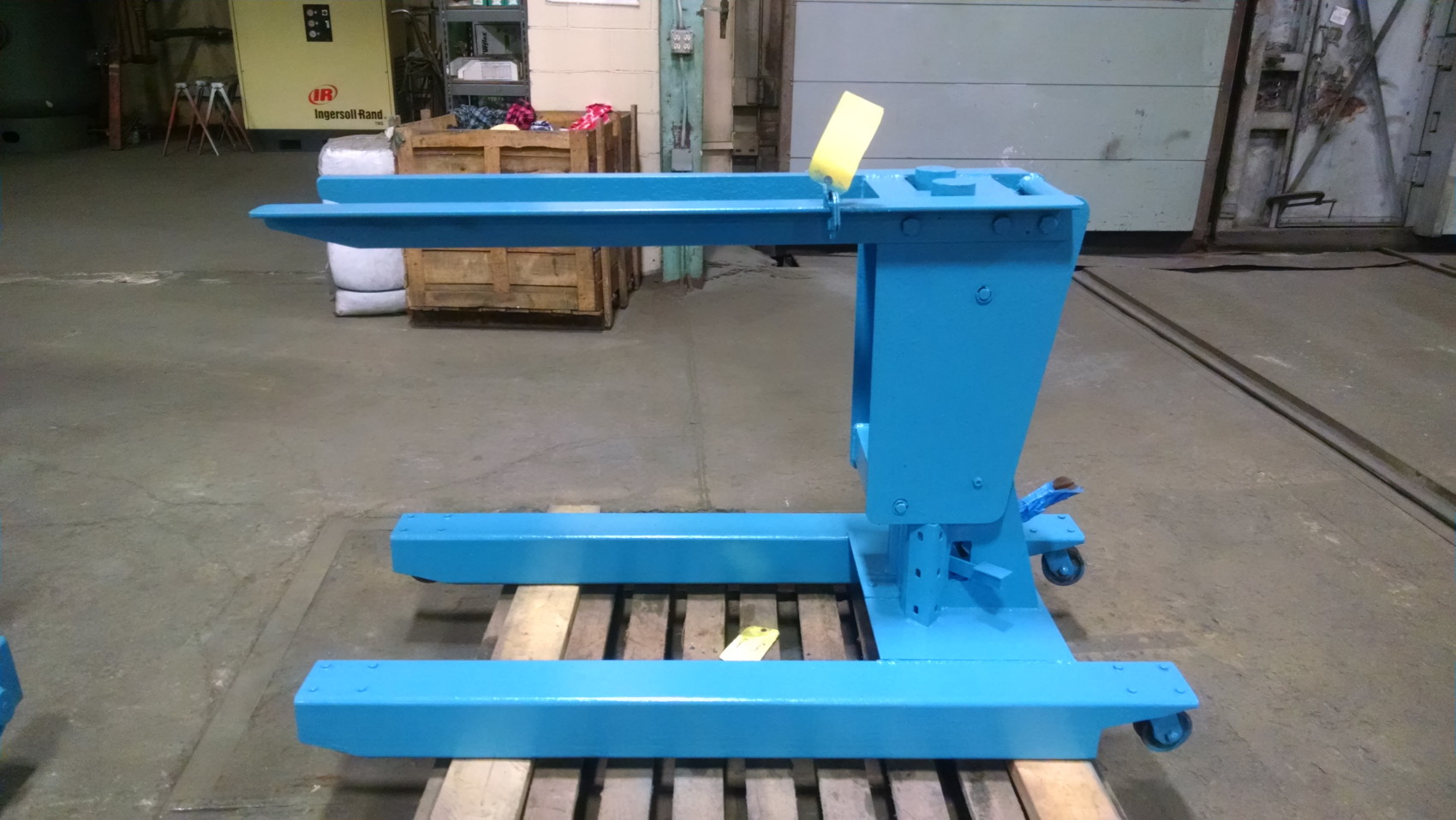

212 mechanical pump with stokes 307 (400 CFM) blower, load cart,
30 hp / 125 hp internal quench system 5 bar,
surge tank, dry coolers water recirc system
To find out
more about this system, or to request a quote, please submit an information request <here>
