Abar Ipsen HR
34

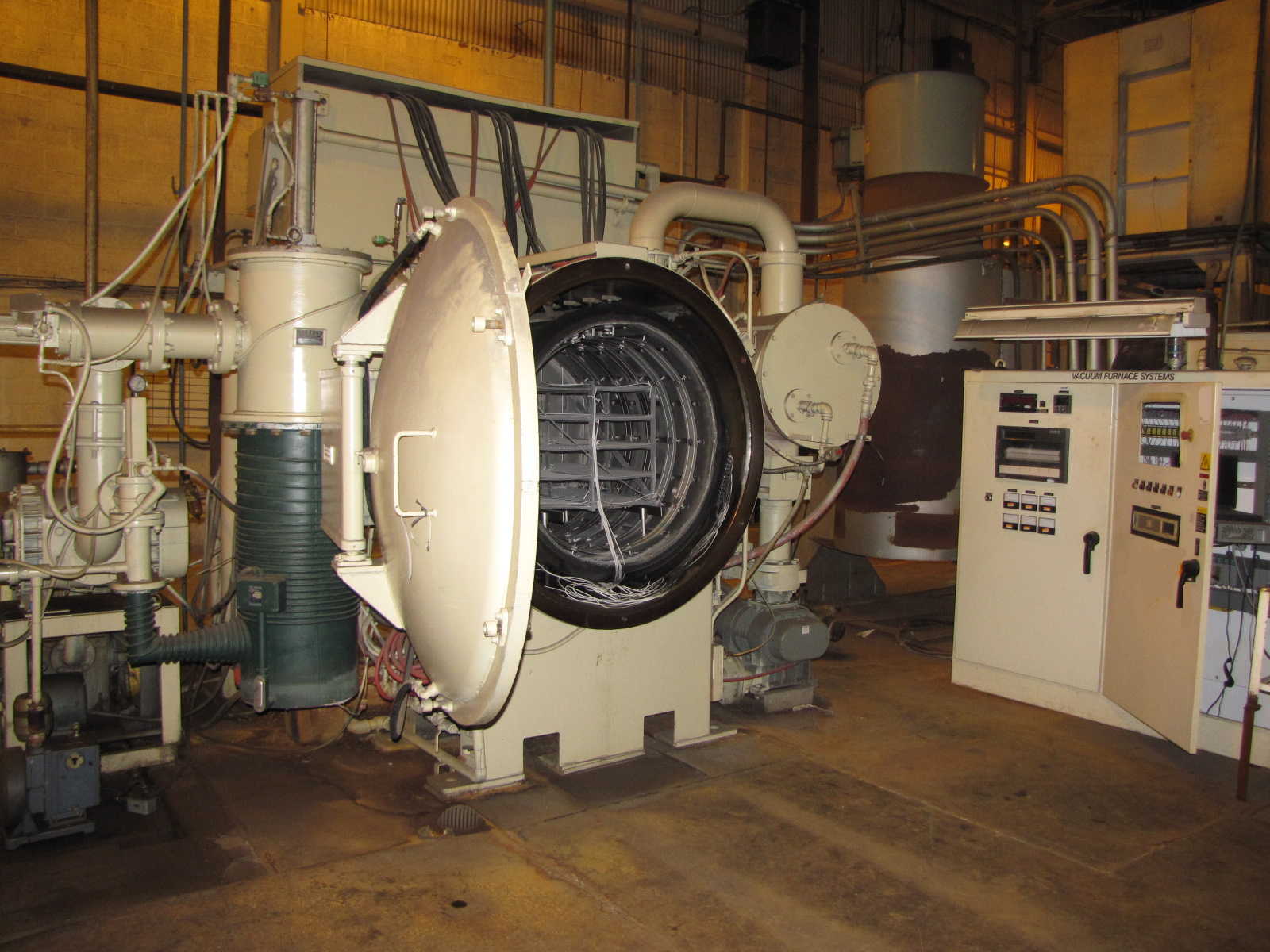

24" x 24" x 36" Pressure Quench Vacuum Furnace
Manufacturer
Abar Ipsen
Type
Batch Vacuum
Furnace
Model
HR-34

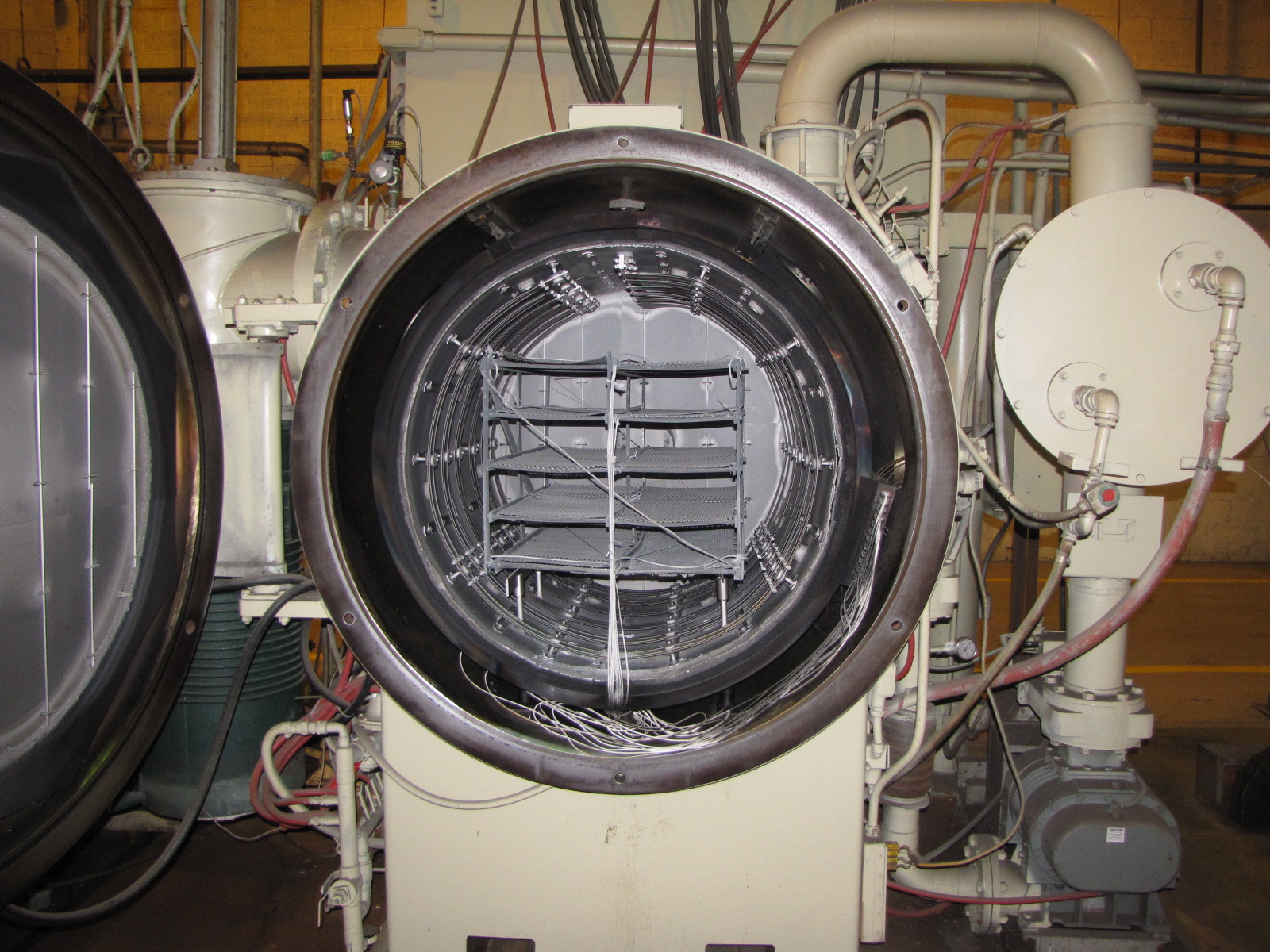

Hot
Zone
24”High
x 24”Wide x 38”Deep, Graphite insulation with
moly elements
Overall
Dimensions
Maximum
Temp
2400ºF
Electrical
Utilities
150
kw, 480 VAC, 3 phase
Controls

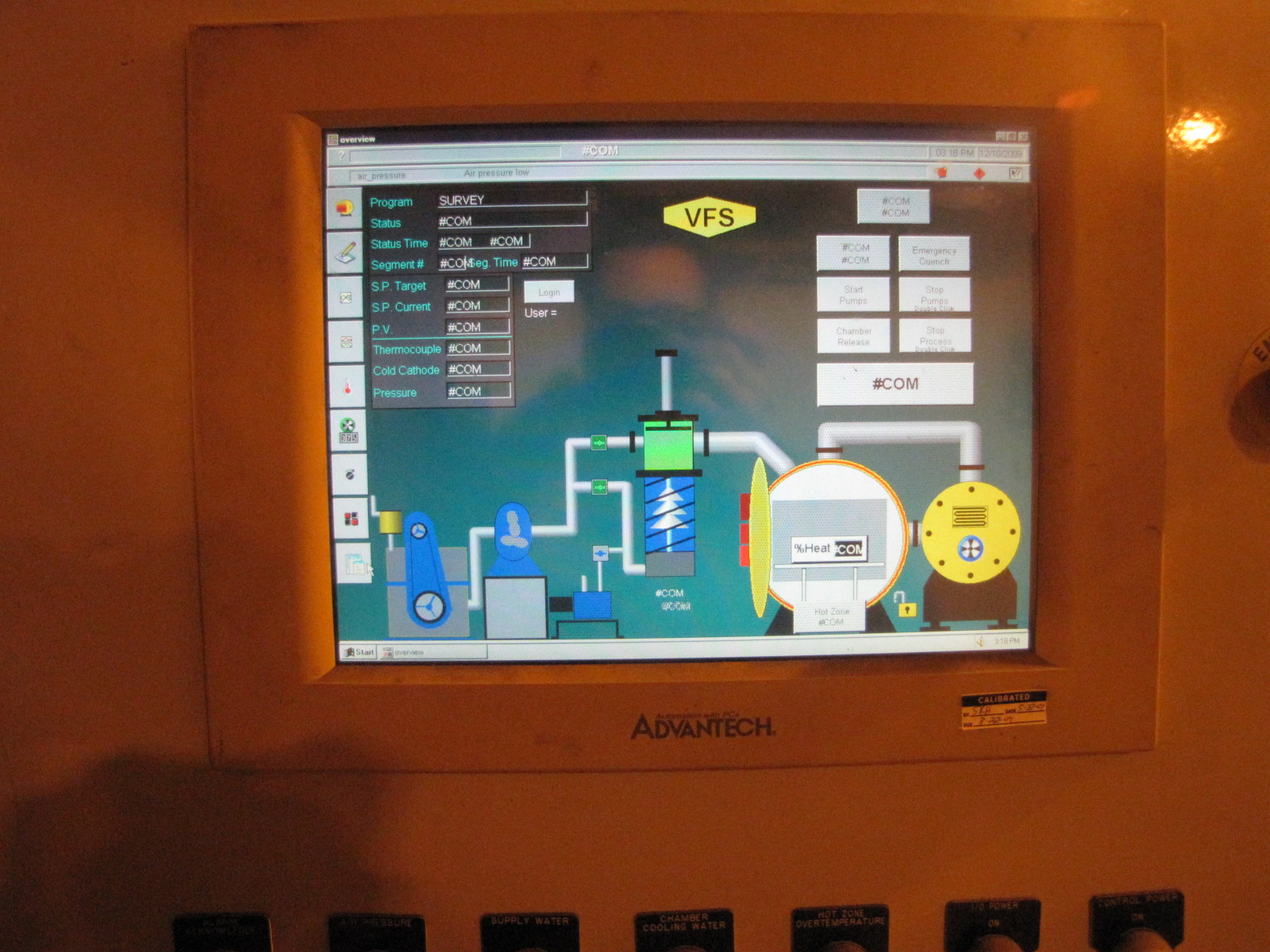

Touch
Screen control system with Allen-Bradley SLC 5/03 PLC,
Honeywell UDC 23000 over temp, Televac MM200 Digital
vacuum gauge, Yokogawa DR240 Digital chart recorder
General

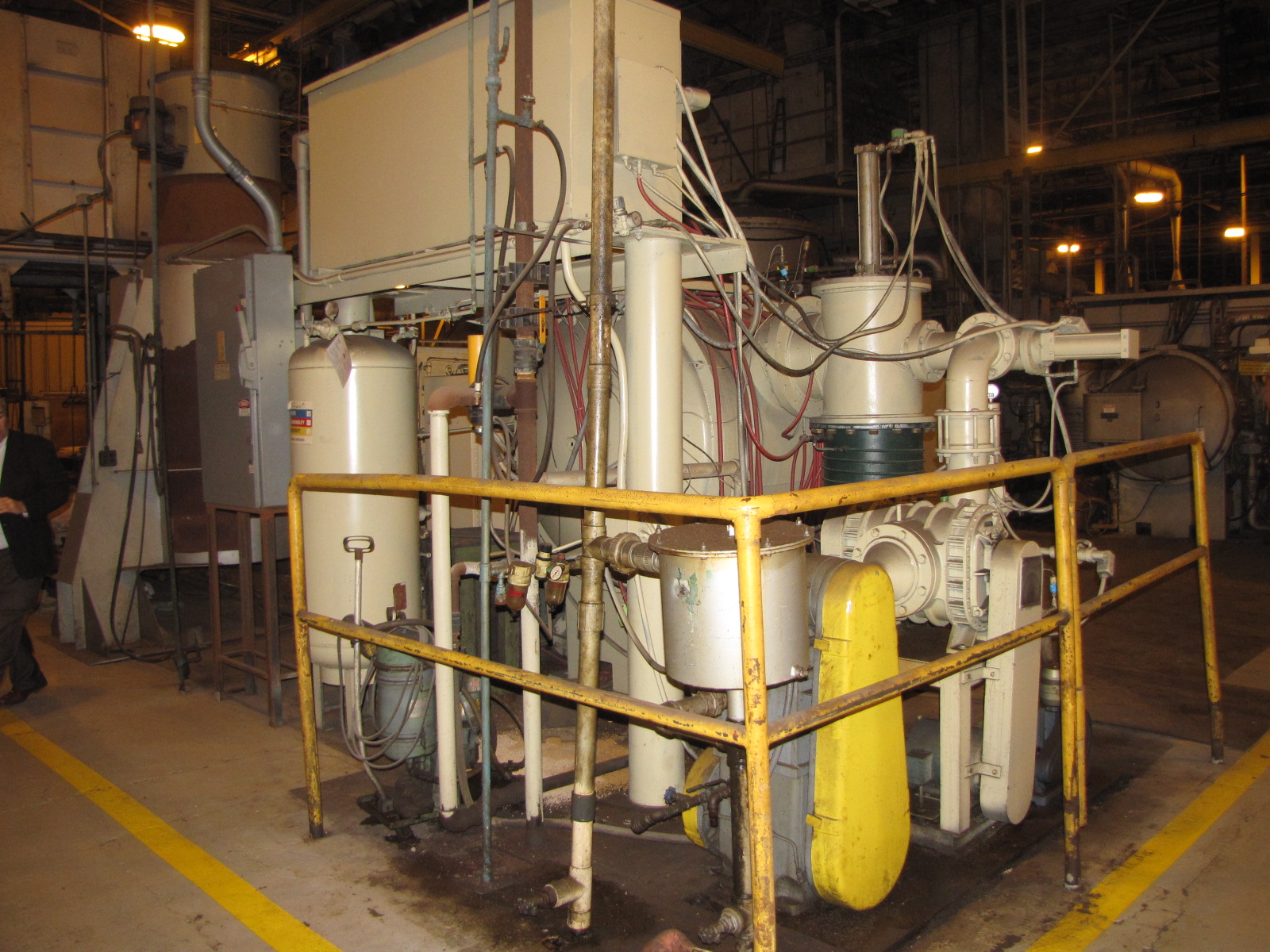

Stokes
212-11 mechanical pump with 615 blower, external
quench system, Bolted door for positive pressure, 16" Diffusion pump
Delivery
Ready for rigging /shipment
To find out
more about this system, or to request a quote, please submit an information request <here>
